Disruptive Downhole
Swarf Collection

QUICK FACTS

  • 100% Swarf Capture. Full debris collection in a single run.

  • Tool Versions: 9 5/8″–10 3/4″ and 13 3/8″–14″

  • Safe and efficient. No clean-up runs. No BOP pulls.

  • 60+ runs. Zero partial collection failures.

  • Field proven and trusted by IOCs & NOCs worldwide.

How It Works

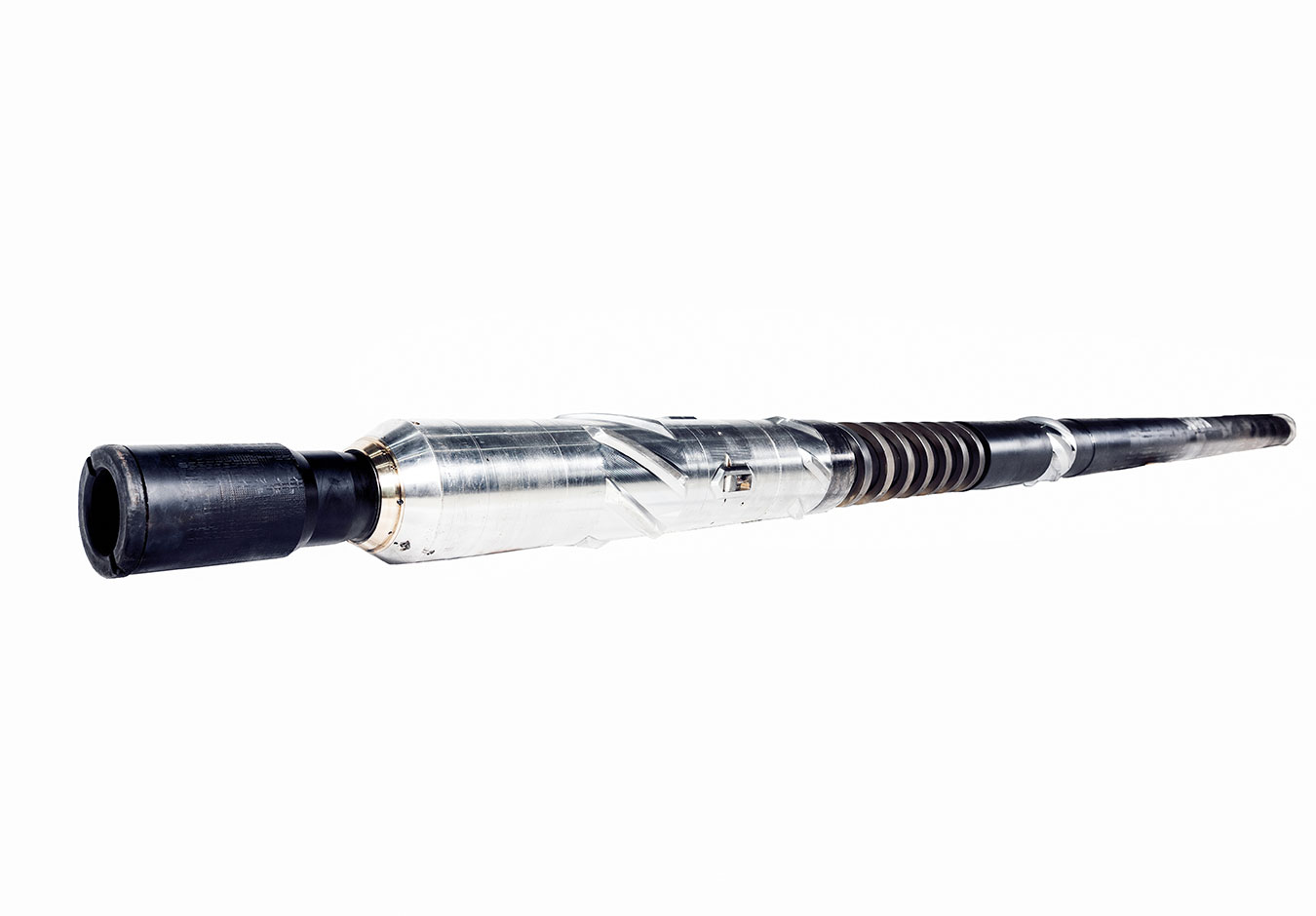

The Swarfix® WCT operates using a unique and efficient system designed for optimal downhole swarf collection. At the core of the system is the Rolling Anchor, which locks and rotates the Conveyor Screw to drive the collection process. As swarf is gathered, the Magnet Sleeve continuously self-cleans during operation, ensuring consistent magnetic strength throughout the job. The collected swarf is stored in a High-Capacity Container, specifically sized to accommodate the full volume produced during whipstock milling. This integrated approach ensures reliable performance and minimal downtime.

Key
Technology
Highlights

Proven swarf collection in >50 field operations

  • Zero partial collection incidents
  • No high-pressure clean-up runs required
  • No additional offshore personnel required
  • Collected swarf is handled at the Tananger facility by certified waste vendors
  • Compatible with all major whipstock service providers

Tool Specifications

Two models of the Swarfix® WCT are available to match standard casing sizes:

Specifications

1338 Swarfix® Well Cleaning Tool (WCT)

Description
Swarfix® WCT technology is designed to collect and store swarf in a container downhole during operation to eliminate:

  • Swarf in return flow
  • Swarf through BOP (impact on safety, time, and cost)
  • Handling of swarf offshore

Applications for swarf collection

  • Whipstock window milling
  • Polish run

Swarfix® WCT can be run in single or “multi” configuration dependent on the amount of swarf to be captured.

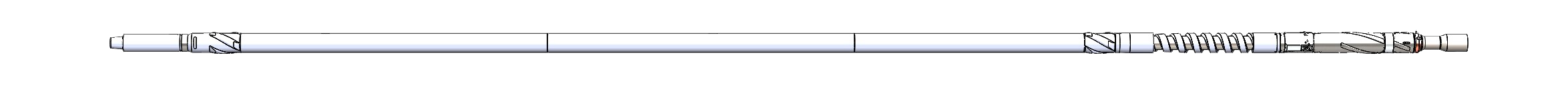

1338 Swarfix® WCT Specifications

DESCRIPTION SPECIFICATIONS

REFERENCE, COMMENTS
Tool connections top/bottom   To be configured with actual drill pipe connections
Max tension yield  1 135 000 lbs
Max torsional yield 57 530 ft lbs
Max makeup torque 40 000 ft lbs Tool internal connection
Anchor casing ID reach 13″  13 3/8″ to 14″ casing
Min. ID  2 1/3″ ID through Anchor Sub
Max. OD  12 1/8″ Fluted centralizers on Swarf Container and Anchor Sub
Swarf Container capacity  420, 375, 310 [ l ] 14, 16 or 18m tool basket
Max DHT 110 °C / 230°F
Max hydrostatic pressure NA Pressure balanced tool
Max dynamic pressure 345 bar (5000 psi) Tool active ≥ 20 bar pressure drop
Tool length* 12,97m (42.6 ft) Length of handling pup, x-overs not included, 420l SC
Tool weight* 2300 kg Without x-overs, incl.420l SC
Max RPM 120 rpm 140 rpm for shorter intervals accepted
Max flowrate 3500 lpm Max rate in qualification testing for 100% swarf collection
Max deviation 85 deg Max dev in operation executed 80,1 deg
Max dogleg 8 deg / 3 deg To pass through / operation

*Dependent on Swarf Container length

Specifications

Swarfix® WCT 958

Swarfix® WCT will collect, store and secure all swarf downhole inside the “Swarf Container”, no swarf will be circulated through BOP to surface.

Positive Impact on

  • Operational safety by no swarf circulated through BOP
  • Operational efficiency by potential excluding BOP cleaning
  • No swarf left downhole that may cause negative impact on following operational sequences
  • ECD by no change in OD/flow area during milling operation
  • No swarf handling at surface
  • All swarf handling onshore without manual handling
  • Swarf separated from cuttings by the Swarfix® WCT only collect magnetic material, support easier handling for recycling of the waste

Applications

  • Window milling
  • Cleanout runs
DESCRIPTION DATA 9 5/8” TOOL  REFERENCE, COMMENTS
Connections top/bottom DS50  box/pin
Torsional Yield Capacity 35 180 lb ft
Tensile Yield Capacity 1094 000 lbs
Make up torque  21 400 lb ft  Internal connections
Anchor ID reach 8,26″ – 8,8″ Cover 9 5/8” and 9 7/8” casing
Min ID tool 2,0″ ID inner pipe
Max. OD tool  8,27″ Max OD centralizers
Min flow area (anchor wheel housing) 9,049 in2
Swarf container capacity  163 l ≈ 400 kg swarf
Max DHT 110°C
Max hydrostatic pressure NA Pressure balanced tool
Max dynamic pressure 345 bar/5000 psi
Anchor activation pressure 32 bar dynamic pressure drop
Tool length  13,14 m
Tool weight 1270 kg To be confirmed
Max RPM 140
Max flowrate 2200 lpm Max rate @ swarf collection tested
Max dogleg, operation 3 deg
Max dogleg, passing through 8 deg
Max deviation at operation depth 80 deg

Adaptability / Safety

The Swarfix WCT integrates with multiple BHA configurations and casing profiles. It is lightweight, modular, and designed for easy handling on deck. Post-operation, the sealed swarf container is returned to shore for secure and sustainable disposal.

Visual Demonstration

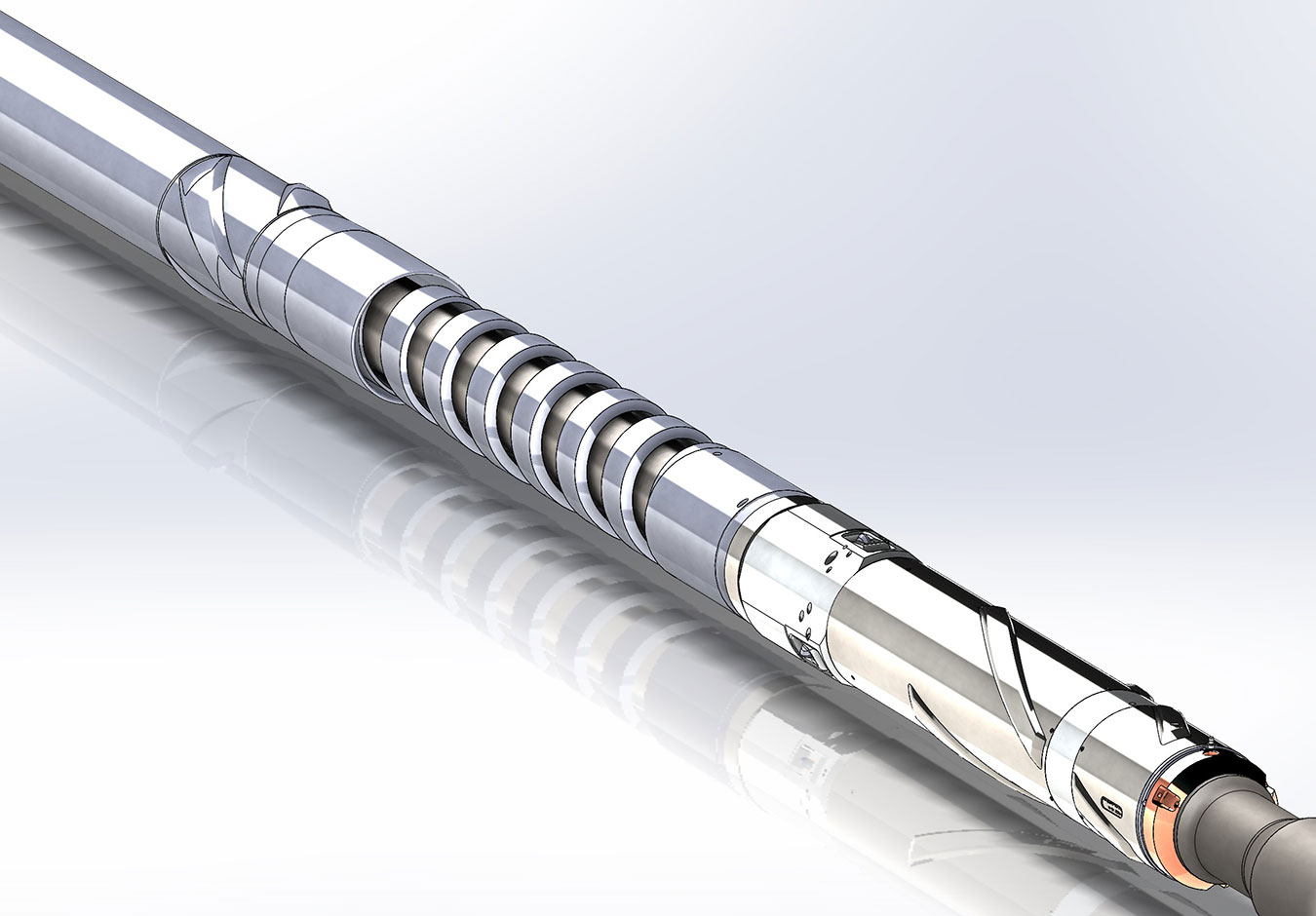

This page includes 3D illustrations, cross-sections, and a demonstration film to show the WCT’s swarf collection process in action. These visual tools support operator training and operational planning.
